Loose Wheel Nut Indicator, 33mm, Torque COLOR OPTIONS | QTY 10

Loose Wheel Nut Indicator, 33mm, Torque | QTY 10

INCLUDED: Ten (10) - Loose Wheel Nut Indicator, 33mm, Torque COLOR OPTIONS

• Bolt Hole Spacing: 33mm
• Material: Durable Plastic
• Application: Designed for 38mm Hex Nut Fittings
• Color Options: Red and Yellow

Ensure the safety and reliability of your fleet with this innovative Loose Wheel Nut Indicator. Engineered to provide an instant visual alert for wheel nut movement, it acts as an essential safety tool for fleet inspections.

In addition to detecting loosening wheel nuts, the indicator melts at a specific temperature of 125ºC (257ºF), offering early warning signs of potential issues with brakes or bearings. This feature enhances safety by allowing for timely intervention.

Key benefits include:

• Supporting fleet safety checks with ease and efficiency
• Cost-effective and simple to implement across your vehicles
• Made from the world's first biodegradable material for wheel nut indicators

ABOUT:

Identifies Torque Issues: If a lug nut moves, the nut & stud should be
inspected - TIA & TMC recommended practices.

Designed to Melt: Identifying wheel end issues causing excess
heat, such as wheel bearing failure.

Only Point-to-Point Indicator: 2x the teeth for more accuracy.

The Easiest to Install: Slides on, stays on!

Torque Check Visual Inspection of Lug Nuts That May Have Become Loose to Prevent Wheel Offs Overall Length: 2-1/4"

Suggested use?

It is recommended to use all one color indicator on the wheel. When a lug nut is required to be tightened, replace indicator with a different color to ensure easy visual inspection of the recently tightened lug nut.

What causes a lug nut to loosen?

The most frequent cause of loose lug nuts is vibration, causing the nut or bolt head to slide relative to the joint. Shifting between the lug nuts and bolts can also be caused by bolt bending, temperature differences in the materials, or excessive applied forces at the joint which could cause damage to the threading.

Will my CHECKPOINT loose lug nut indicators fall off?

With twice the “teeth” on CHECKPOINT as compared to competitors, your lug nut indicators will not fall off. If you have an issue with your lug nut indicators not staying on the lug nut, you may have the wrong size; please see our application chart for the proper CHECKPOINT indicator size.

What makes CHECKPOINT Point-to-Point loose lug nut indicators different?

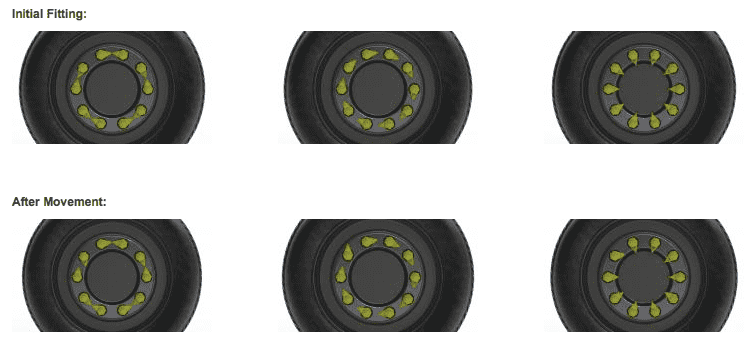

Some indicators are applied in a “daisy chain” pattern, which can allow for the lug nut indicators to move several millimeters before visually indicating a loose lug nut. However, the simple-to-use CHECKPOINT Point-to-Point indicators are installed on each wheel nut with each pair of indicators pointing directly at each other. This simple system provides a clear visual pattern for the driver, indicating which wheel nuts need tightening.

The Original Checkpoint

How to Use Checkpoint
