1" Forged Long D-Ring w/ Weld-On Clip — 15,000 lb. WLL, Made in USA
1" Forged Long D-Ring w/ Weld-On Clip — 15,000 lb. WLL, Made in USA
SKU:DR1LUS
76 in stock
Couldn't load pickup availability

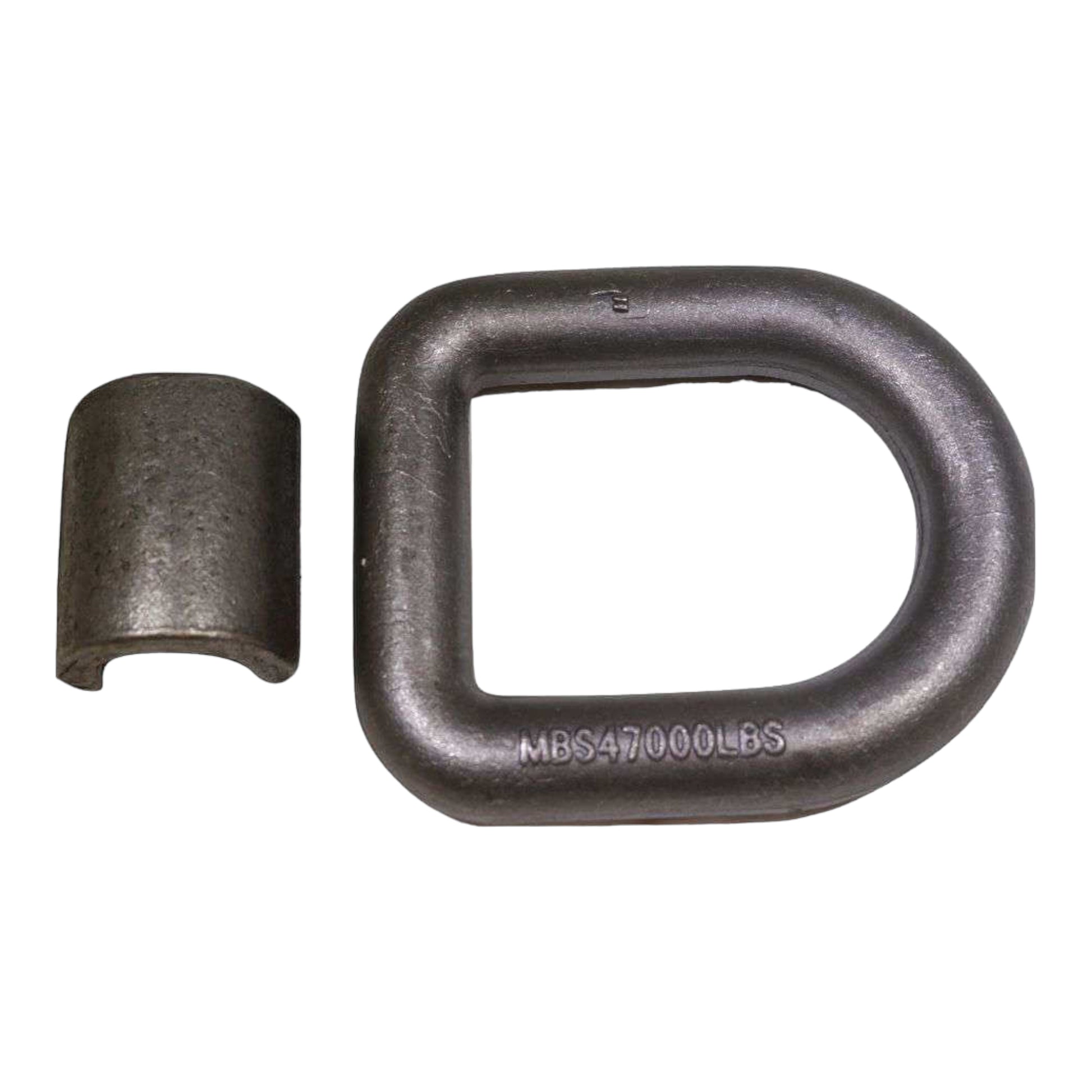

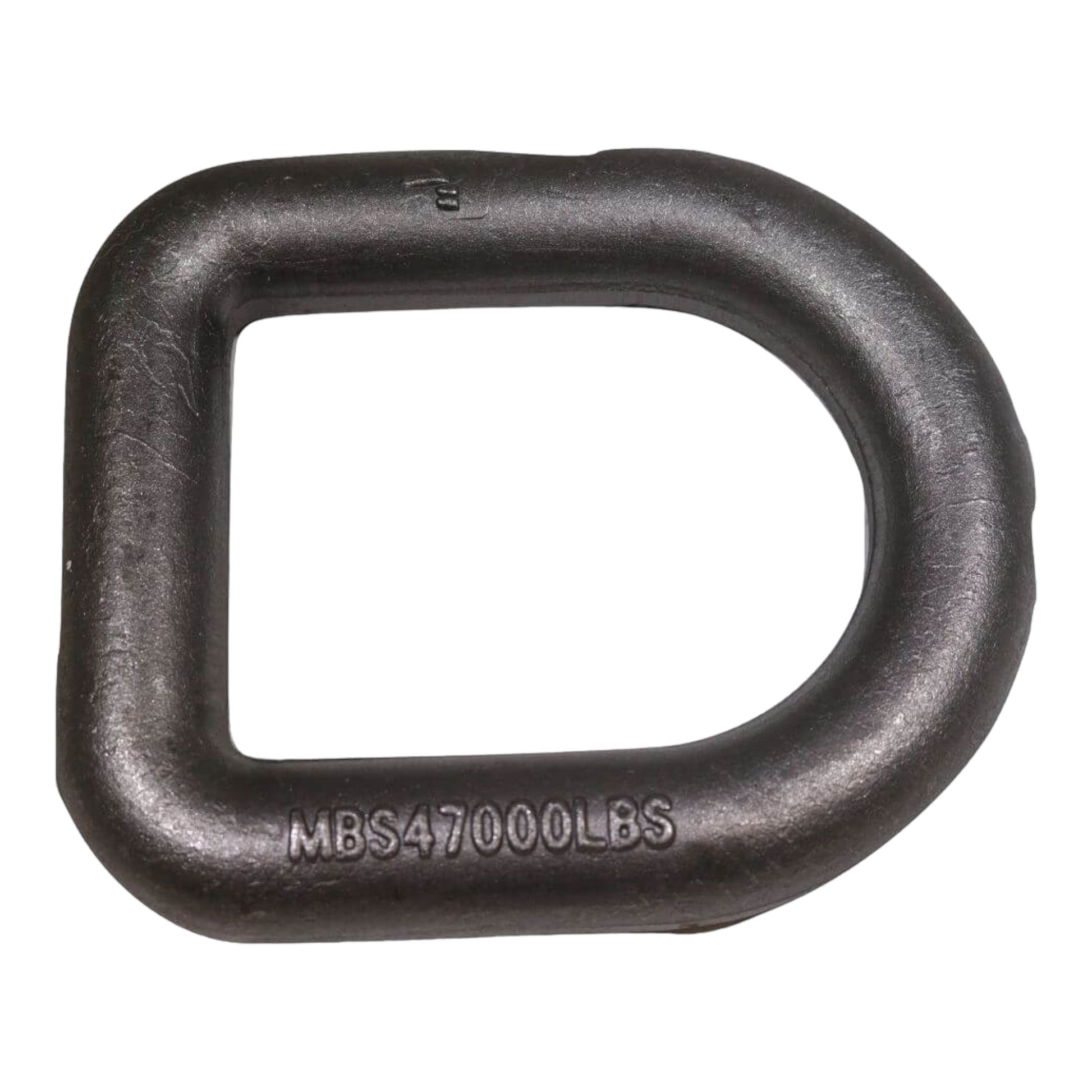

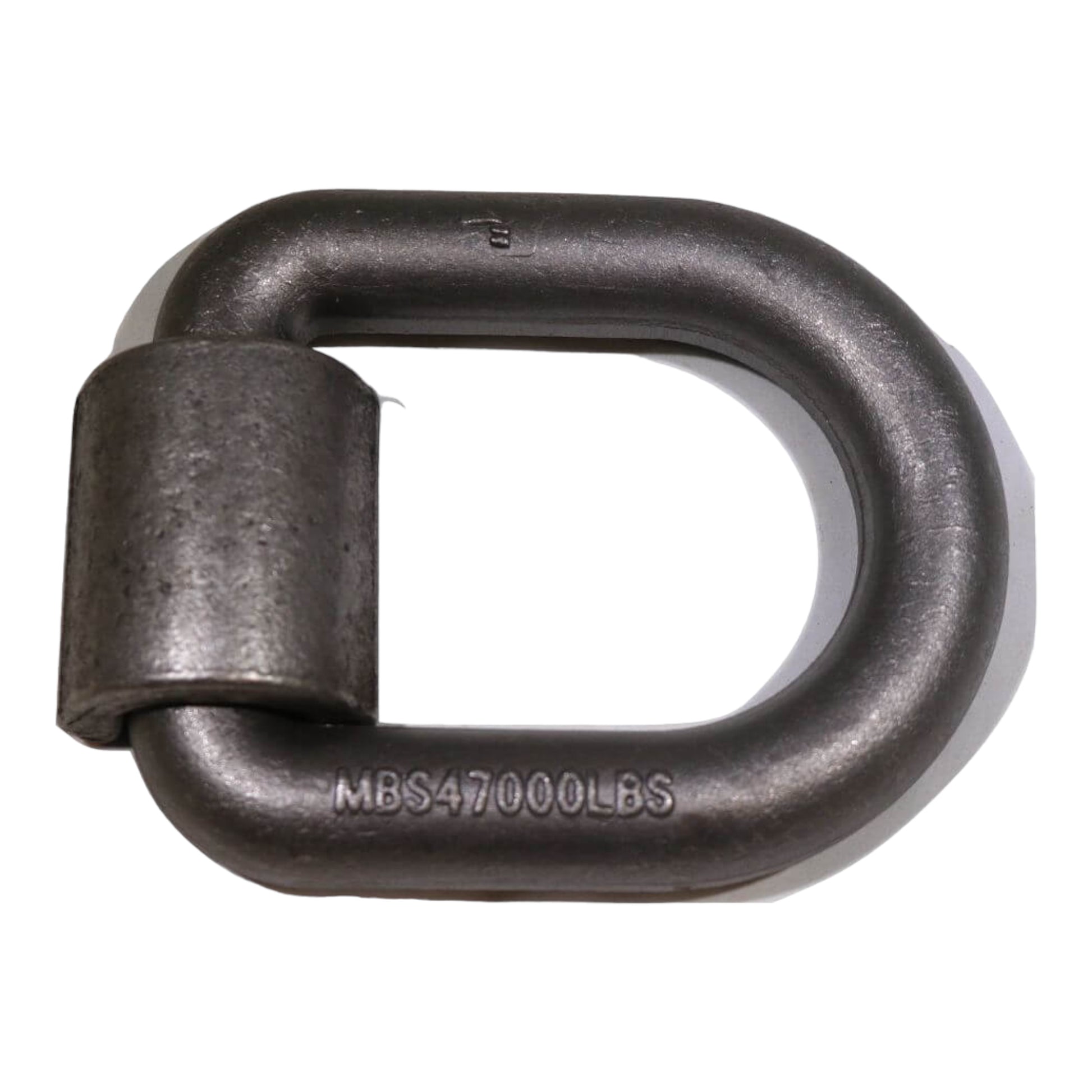

1" Forged Long D-Ring w/ Weld-On Clip — 15,000 lb. Working Load Limit, Made in USA
INCLUDED: One (1) — 1" Forged Long D-Ring w/ Weld-On Clip
ABOUT: Made in the USA, this 1" forged long D-ring with a weld-on clip is rated for a 15,000 lb. Working Load Limit, built from industrial-grade forged carbon steel for heavy hauling and rigging applications.
Key Features
- 1" — 15,000 lb. Working Load Limit, 47,000 lb. breaking strength* with weld-on clip
- 4" x 5" ID, 5" x 6" OD
- Drop forged carbon steel, self-colored, RoHS compliant
- Tie-down anchor meets ASTM A668, Class D
- 75,000 PSI minimum tensile strength
- Ring: C1045 steel · Clip: C1018/C1020 steel
- Made in the USA
* When properly mounted.
Looking for the import-priced version of this D-ring? See DR1L.
Frequently Asked Questions
What's the difference between a weld-on and a bolt-on D-ring?
A weld-on D-ring is welded directly to a flat steel deck or frame member for a permanent connection with no moving parts. A bolt-on D-ring mounts through a bracket with hardware, so it can be repositioned or removed without cutting or welding.
What does Working Load Limit (WLL) mean for a D-ring?
WLL is the maximum load the D-ring is rated to carry in normal tie-down service. It's set well below the ring's breaking strength as a built-in safety margin — never load a D-ring at or above its breaking strength.
Are GO-TOW forged D-rings RoHS compliant?
Yes. GO-TOW's forged D-rings are RoHS compliant, meaning they're manufactured without the restricted hazardous substances covered by the EU's RoHS directive.
