Safe 'N Secure

4 x 30 In V-Bridle w/8 In J-Hooks & Mini J-Hooks | DiamondWeave™

$112.95

Sale Sold out

Shipping calculated at checkout.

Color Blue Gold Orange Red

SKU:TOW-4X308FJMJBL

50 in stock

Quantity

4-Inch DiamondWeave™ V-Bridle — 5,400 lb WLL, Dual J-Hook System, Assembled in USA

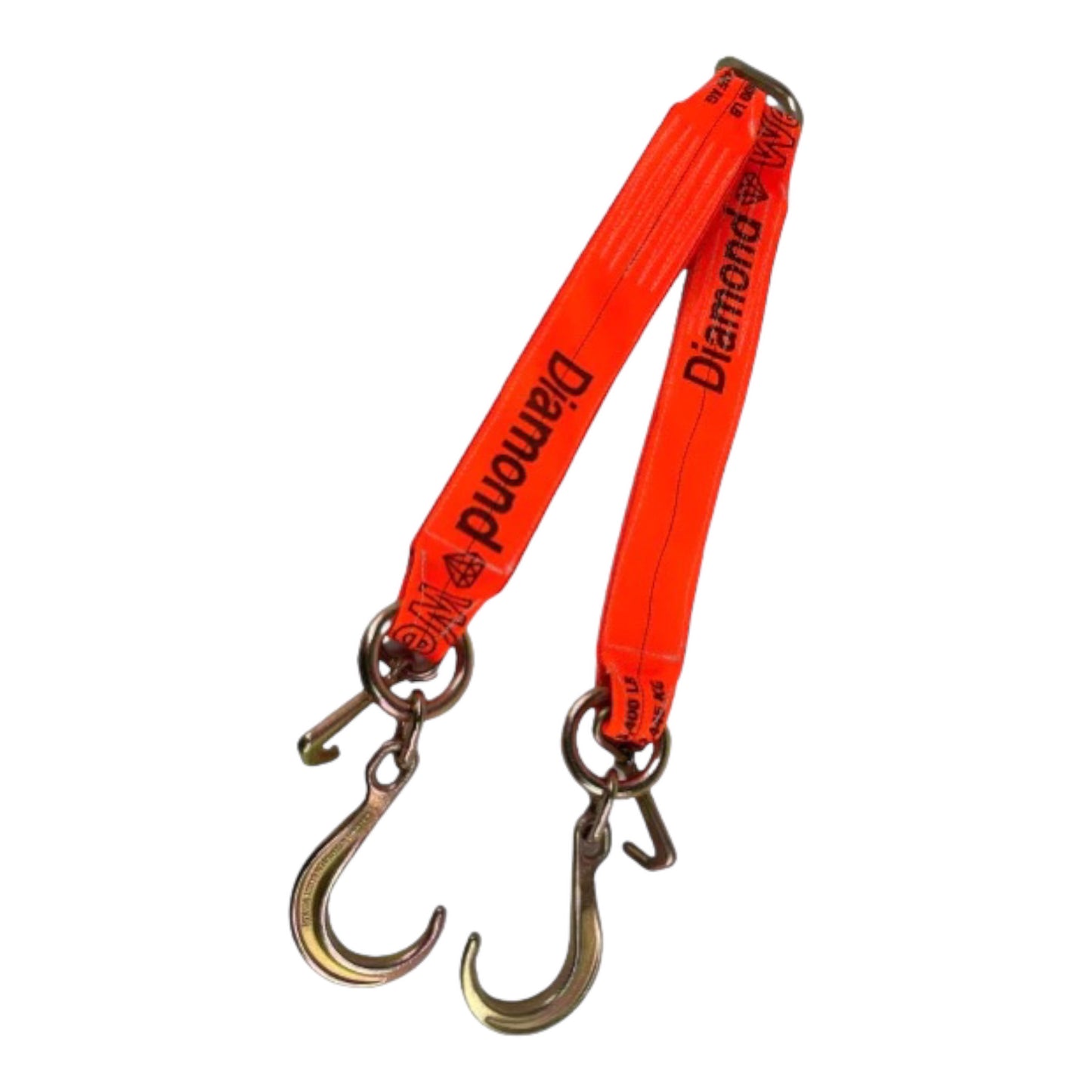

The GO-TOW.COM 4" x 30" V-Bridle is the widest, heaviest-duty frame-mount tie-down in the line. Rated at 5,400 lbs Working Load Limit, it pairs 4-inch DiamondWeave™ webbing with a dual J-hook system — 8-inch forged J-hooks for the primary carrier rail attachment plus mini J-hooks on the frame side — giving you two purpose-matched fittings in a single strap. Assembled in the USA.

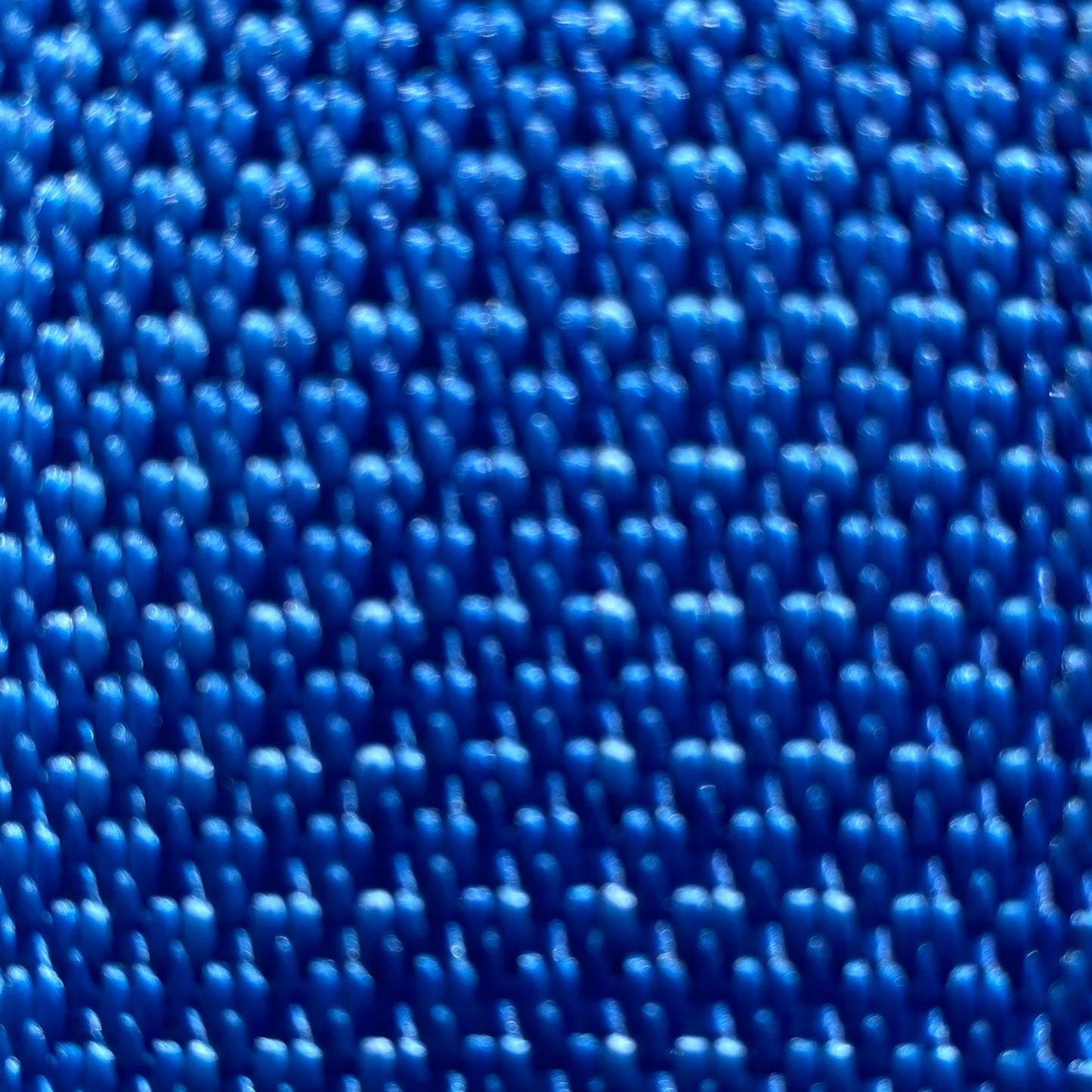

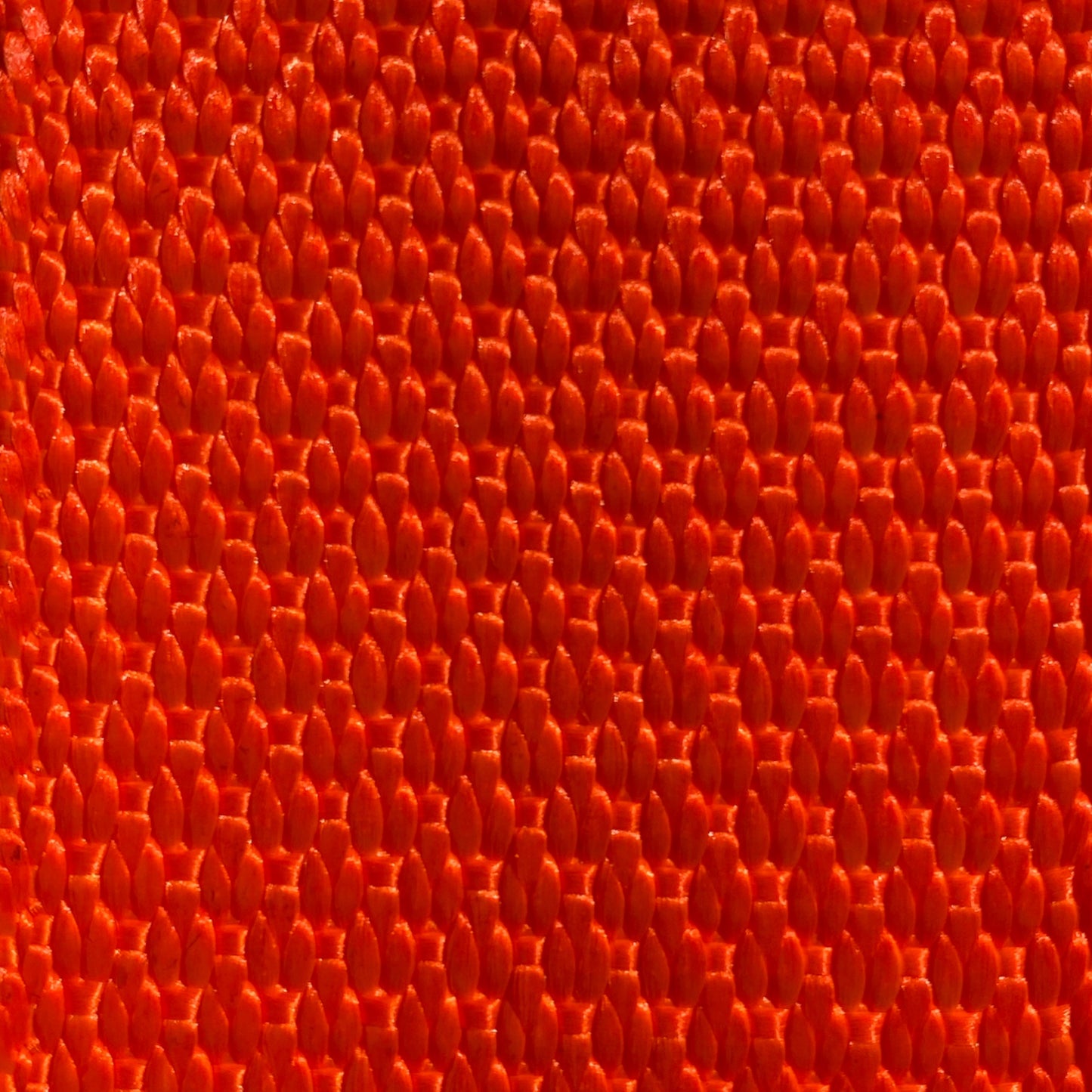

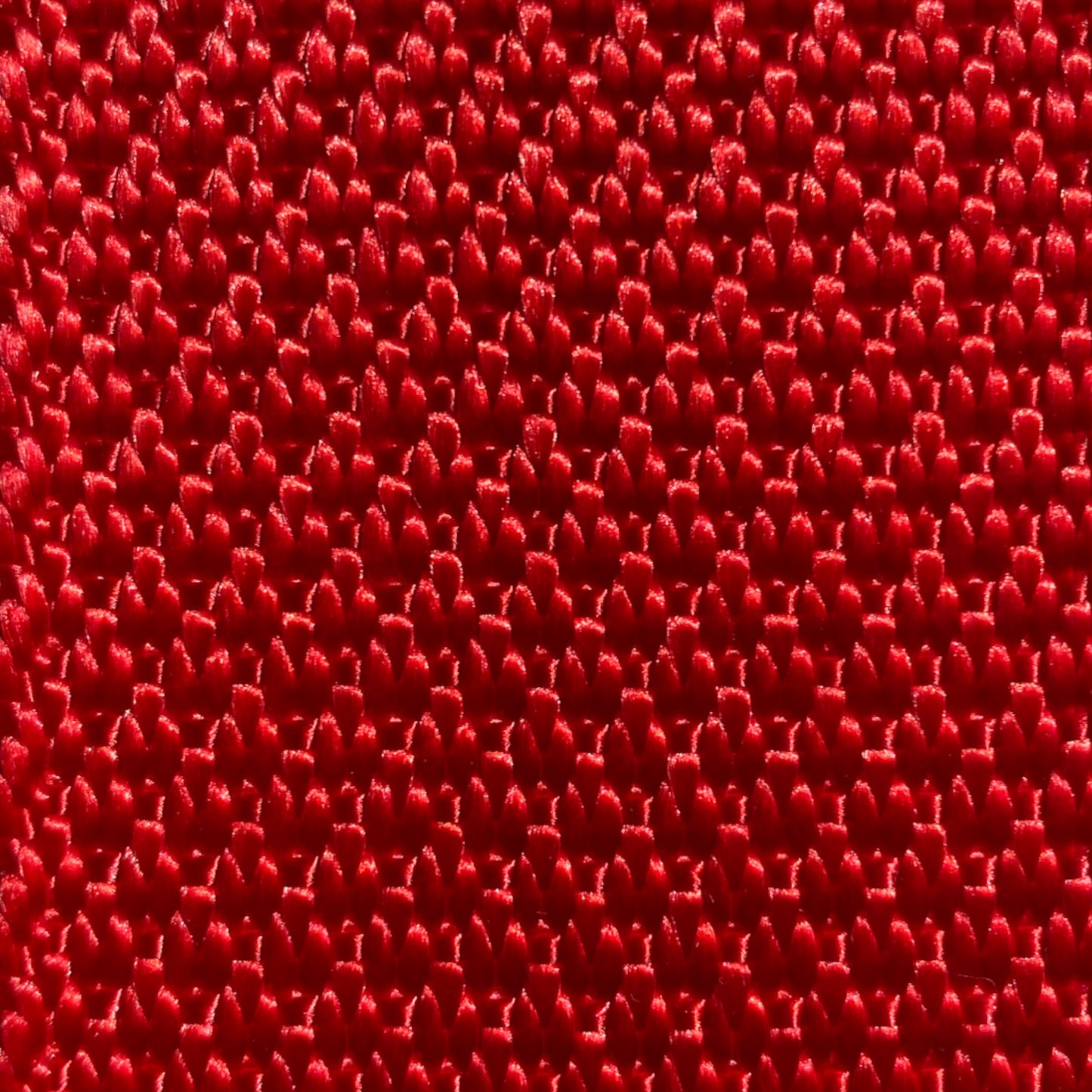

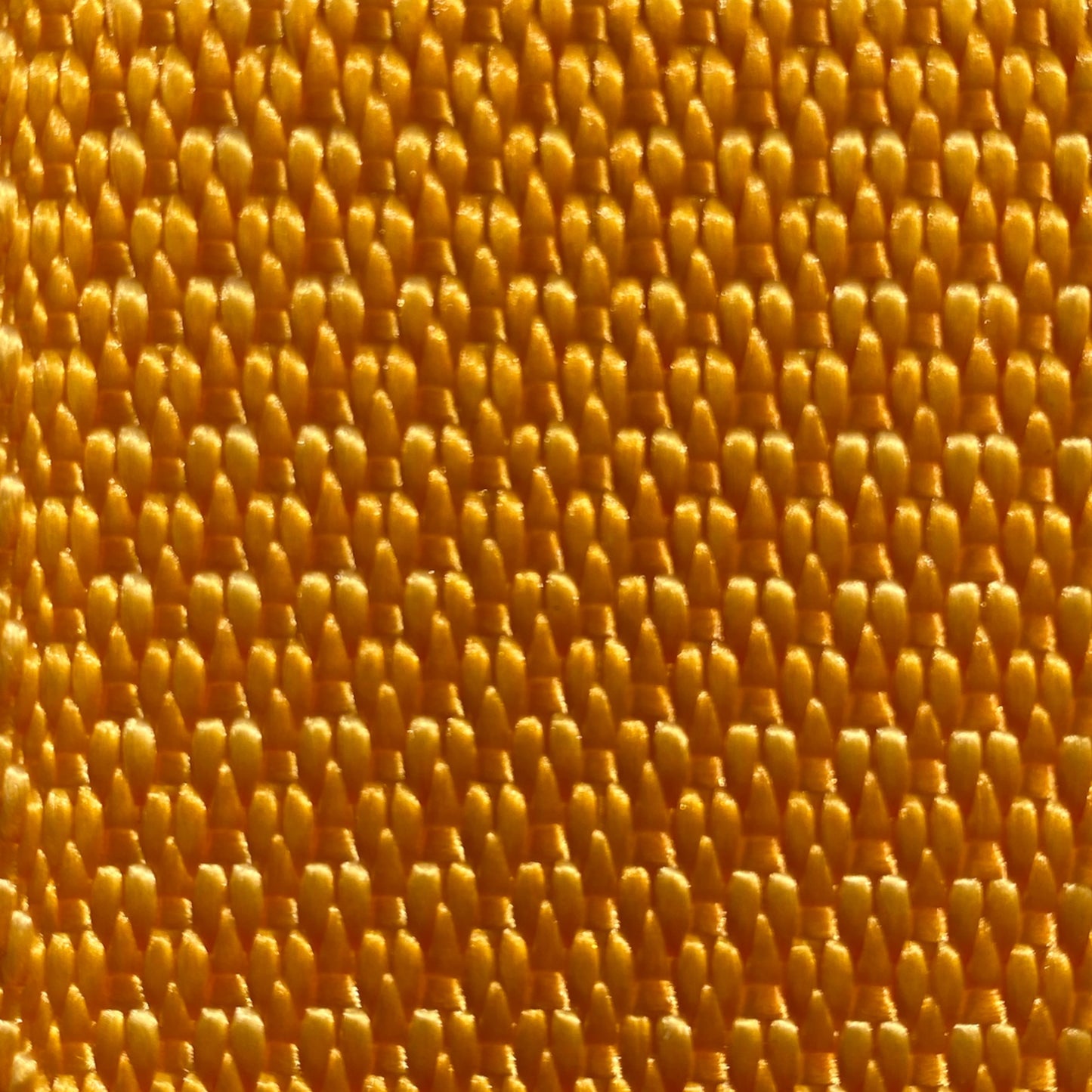

DiamondWeave™ webbing (US Patent #8,136,555) uses a cross-diagonal weave that distributes abrasive friction stress evenly across the webbing face — resisting the point degradation that shortens standard polyester webbing life in high-cycle auto transport applications. Available in 4 colors: Blue, Gold, Orange, Red.

What's Included

One (1) — 4" x 30" V-Bridle Strap with DiamondWeave™ webbing
8-Inch Forged J-Hooks for carrier rail attachment
Mini J-Hooks for frame-side attachment

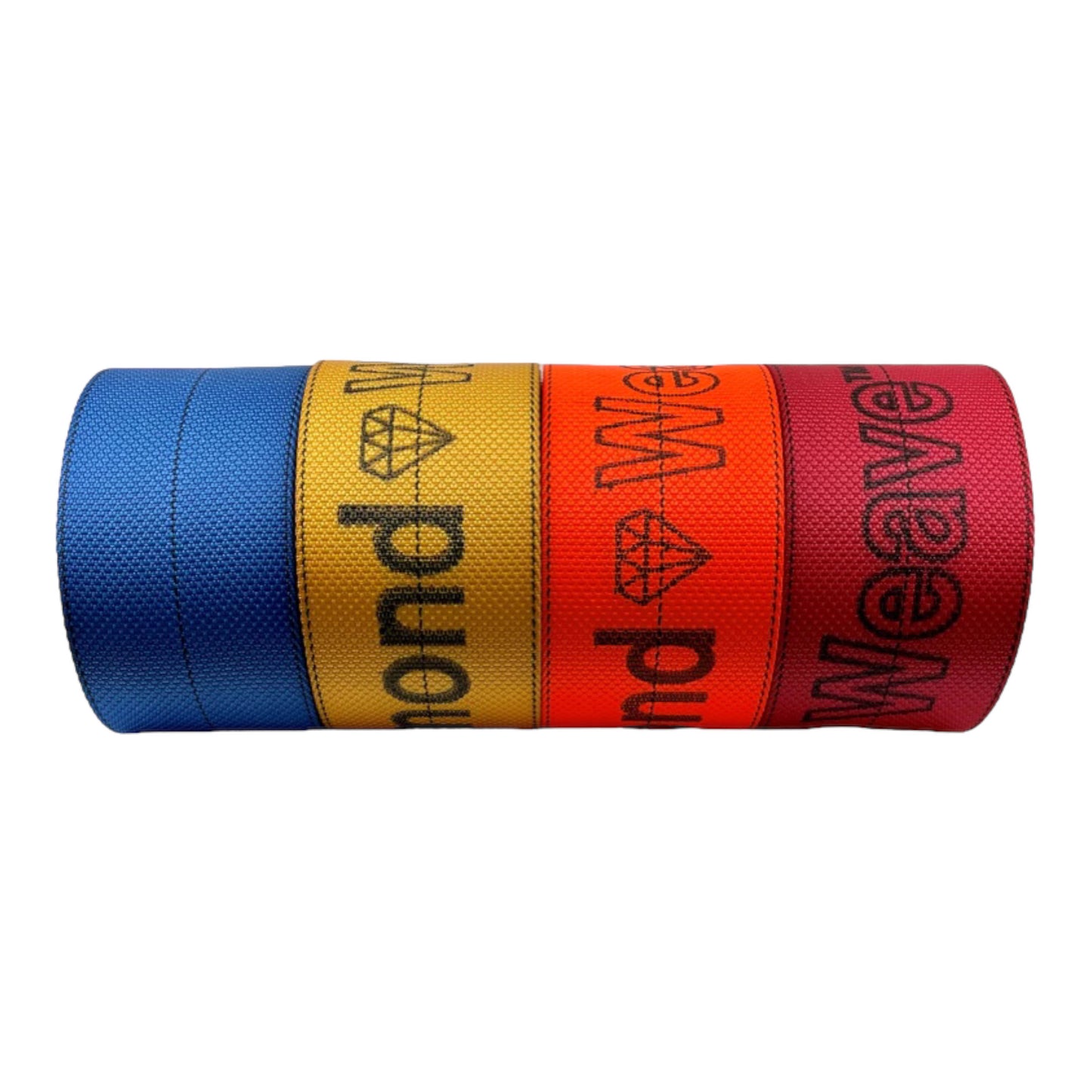

Choice of 4 DiamondWeave™ colors: Blue, Gold, Orange, Red

Specifications

Strap Width	4 Inches
Strap Length	30 Inches
Working Load Limit (WLL)	5,400 lbs
Hook Type — Rail Side	8-Inch Forged J-Hooks
Hook Type — Frame Side	Mini J-Hooks
Webbing	DiamondWeave™ — US Patent #8,136,555
Configuration	V-Bridle (two-leg diagonal spread)
Assembly	Assembled in USA
Color Options	Blue, Gold, Orange, Red
SKU Format	TOW-4X308FJMJ[BL/GD/OR/RD]

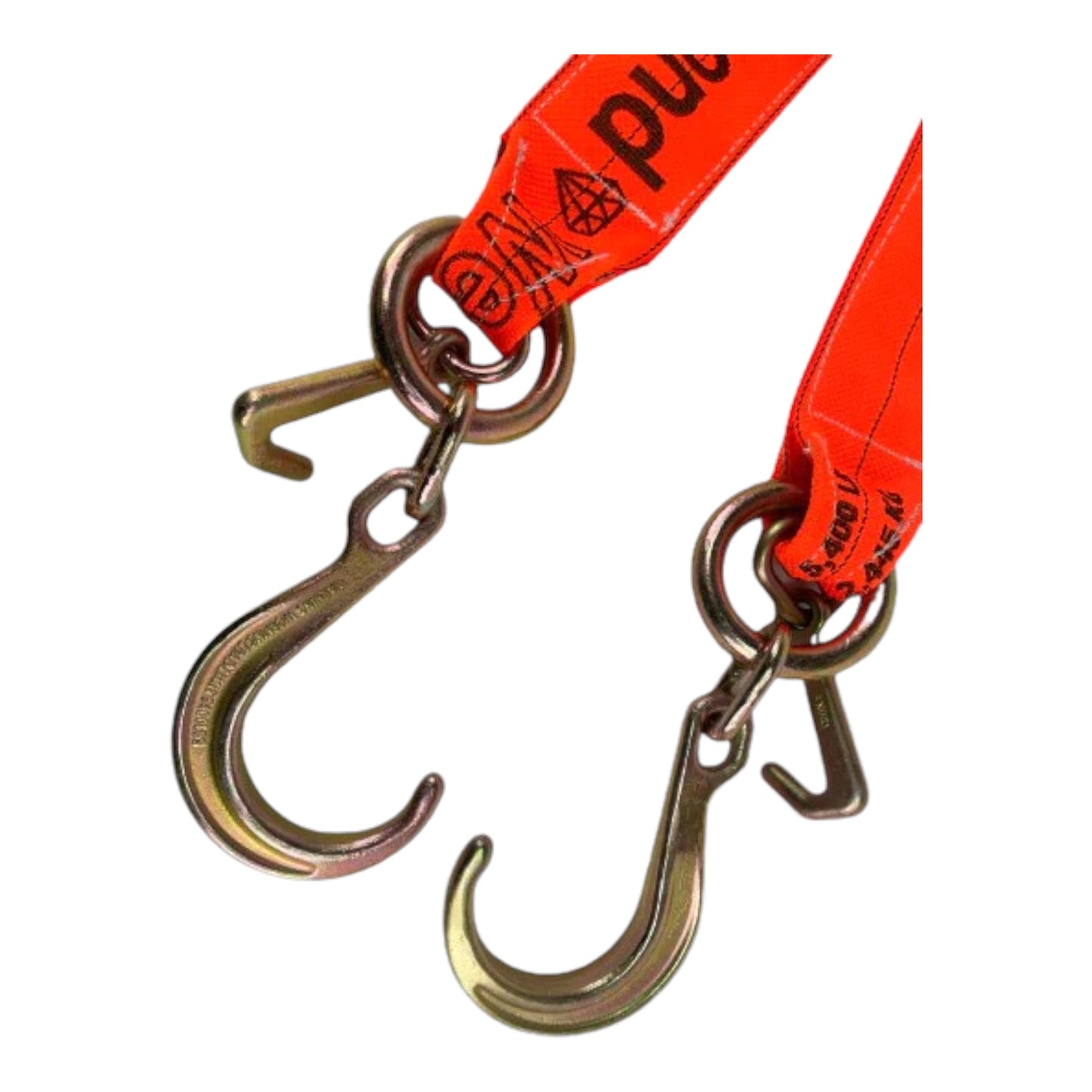

The Dual Hook System — Why Two Hook Sizes

The 4" V-Bridle uses different hook sizes at each end because the two ends do different jobs:

8-inch forged J-hooks (trailer side) — the longer reach seats securely in the carrier's rail slots, which are often recessed or set back from the deck surface. The extra reach prevents missed or shallow seating under trailer vibration and load shift.
Mini J-hooks (vehicle side) — the compact profile is engineered to attach to the vehicle frame or axle attachment points without bulk that would interfere in tight clearance zones around suspension components and lower body panels.

DiamondWeave™ — Patented Abrasion Resistance

DiamondWeave™ webbing (US Patent #8,136,555) was engineered for high-abrasion applications where standard flat-woven polyester fails prematurely. The cross-diagonal weave pattern:

Spreads abrasive friction across the webbing face instead of concentrating it at contact edges
Maintains consistent load distribution further into the strap's service life
Outperforms standard webbing in high-cycle daily use environments proven under rugged conditions
Passes visual inspection longer — wear patterns are more gradual and easier to monitor

Frequently Asked Questions

Why use a 4-inch V-Bridle when 2-inch is standard?

The 4-inch width distributes the 5,400 lb WLL load across more webbing surface and a wider frame contact footprint. This matters most when transport contracts specify a higher WLL, when you're moving heavier vehicles, or when you want the maximum service interval between inspections and replacements. More webbing width means more material absorbing friction and load — the 4-inch V-Bridle is the top-capacity option in the GO-TOW.COM V-Bridle line.

What is the difference between the 8" J-hooks and mini J-hooks on this strap?

The two hook sizes serve two different connection points. The 8-inch forged J-hooks are designed for the trailer carrier rail slots — the longer reach ensures positive seating in rail slots that may be recessed below the deck surface. The mini J-hooks attach to the vehicle's frame or axle — their compact profile fits tight clearance zones without interfering with suspension components or body panels. Together they give you the right tool for each end of the connection.

Does "Assembled in USA" mean the webbing is also made in the USA?

The V-Bridle is assembled in the USA. For specific questions about individual component origin, contact us at Sales@GO-TOW.COM — we're happy to provide the detail your procurement process requires.

How many do I need to secure one vehicle on an open carrier?

Four V-Bridles is the professional standard — one per corner of the vehicle (front-left, front-right, rear-left, rear-right). This creates the four-point frame attachment that prevents longitudinal and lateral movement during transport. Some operators use two for lighter vehicles, but four-point is the commercial standard for regulated transport.

GO-TOW.COM | 1015 N I-35E, Suite 218, Carrollton, TX 75019 | Sales@GO-TOW.COM | Professional-Grade Auto Hauling Supplies
