Forged D-Rings w/ Mounting Brackets, Bolt-On or Weld-On
Forged D-Rings w/ Mounting Brackets, Bolt-On or Weld-On
SKU:DR3/8
200 in stock
Couldn't load pickup availability
Forged D-Rings w/ Mounting Brackets, Bolt-On or Weld-On
INCLUDED: One (1) — Forged D-Ring w/ Mounting Bracket, size as selected

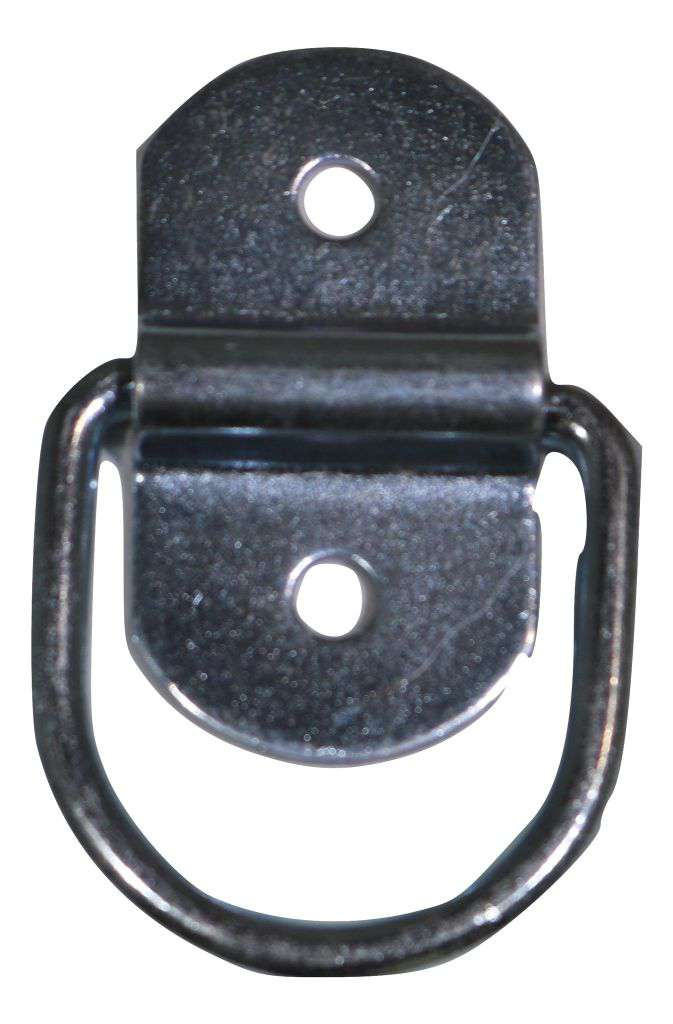

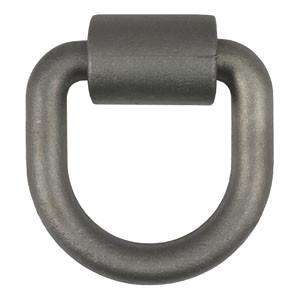

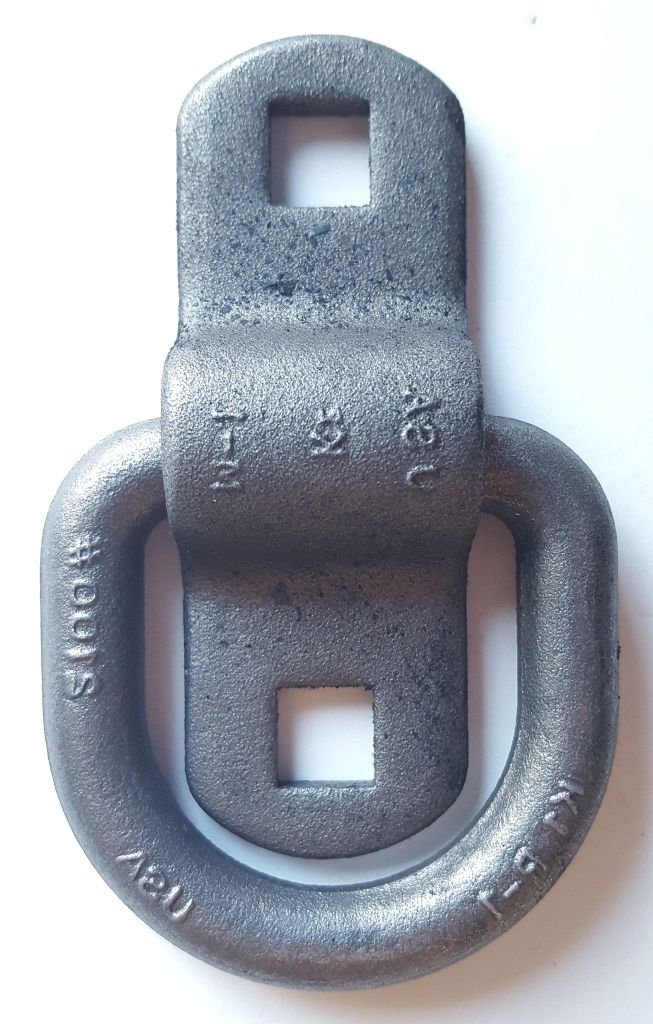

ABOUT: These forged D-rings with mounting brackets give you a bolt-on or weld-on trailer tie-down anchor in five sizes, from a 1/4" light-duty ring up to a 1" heavy-duty ring.
Key Features by Size
- 1/4" — 800 lb. Working Load Limit
- 3/8" — 2,100 lb. Working Load Limit, 10,500 lb. breaking strength* with bolt-on clip
- 1/2" — 4,100 lb. Working Load Limit, 20,500 lb. breaking strength* with weld-on clip
- 5/8" — 8,800 lb. Working Load Limit, 44,000 lb. breaking strength* with weld-on clip
- 1" — 17,000 lb. Working Load Limit, 85,000 lb. breaking strength* with weld-on clip
- Drop forged carbon steel, self-colored, RoHS compliant
- Tie-down anchor meets ASTM A668, Class D
- 75,000 PSI minimum tensile strength
- Ring: C1045 steel · Clip: C1018/C1020 steel
* When properly mounted.
Frequently Asked Questions
What's the difference between a weld-on and a bolt-on D-ring?
A weld-on D-ring is welded directly to a flat steel deck or frame member for a permanent connection with no moving parts. A bolt-on D-ring mounts through a bracket with hardware, so it can be repositioned or removed without cutting or welding.
What does Working Load Limit (WLL) mean for a D-ring?
WLL is the maximum load the D-ring is rated to carry in normal tie-down service. It's set well below the ring's breaking strength as a built-in safety margin — never load a D-ring at or above its breaking strength.
Are GO-TOW forged D-rings RoHS compliant?
Yes. GO-TOW's forged D-rings are RoHS compliant, meaning they're manufactured without the restricted hazardous substances covered by the EU's RoHS directive.
