8-Point DiamondWeave™ 18 Ft Strap Kit for Rollback & Flatbed Tie-Downs with 12" Chain Tail
8-Point DiamondWeave™ 18 Ft Strap Kit for Rollback & Flatbed Tie-Downs with 12" Chain Tail
Heavy freight item. Ships free on heavy-item orders of $500 or more; otherwise shipping is calculated at checkout by weight and destination.
SKU:TOW-8PTCHAIN18-DWBK
50 in stock
Couldn't load pickup availability
8-Point DiamondWeave™ 18 Ft Strap Kit for Rollback & Flatbed Tie-Downs with 12" Chain Tail
The longer option in our chain-tail kit line: four 18-foot DiamondWeave™ straps with 12-inch chain tails, sized for larger vehicles, longer decks, or anchor points positioned farther from the load than a 14 Ft strap can reach.
Configuration and hardware match our 14 Ft Chain Tail kit — the added 4 feet of strap length is the difference, giving more routing flexibility on longer trucks, dually pickups, or decks with anchor rails set back from the wheel wells.
What's Included| Qty | Item | Length | Notes |
|---|---|---|---|
| 4 | DiamondWeave™ Strap w/ 12" Chain Tail | 18 Ft each (+ 12" chain tail) | Eight (8) total tie-down points per kit · select one color |
| Webbing width | 2 inches |
| Strap length | 18 feet each, plus 12-inch chain tail |
| Kit configuration | 4 straps · 8 tie-down points |

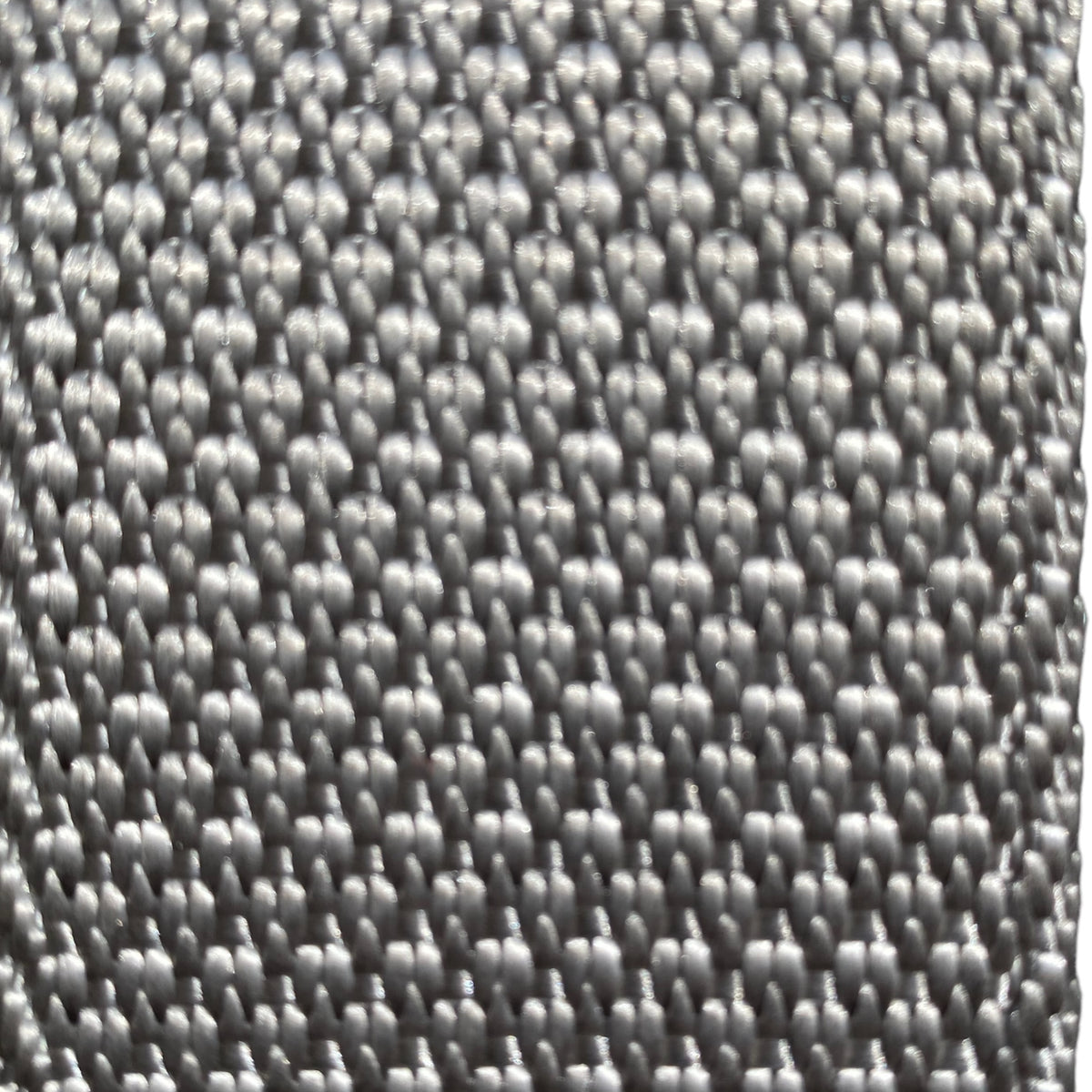

| Webbing construction | DiamondWeave™ (RWC, US Patent 8,136,555) |
| End fittings | 12" chain tail with hook |
| Color options | Black, Blue, Gold, Grey, Hi-Viz Green |
| Working Load Limit (WLL) | 3,333 lb. |
| Ratchet compatibility | Designed for use with compatible 2-inch auto-hauling ratchets (sold separately) |
Commonly chosen over the 14 Ft kit when the vehicle size or deck anchor layout calls for additional strap length to route cleanly.
How do I decide between the 14 Ft and 18 Ft chain-tail kits?
Measure the routing path on your deck from a typical anchor point to the vehicle's tie-down location, allowing enough slack for clean routing and full ratchet engagement without the strap being pulled taut at the end fitting. The 18 Ft kit is commonly chosen for larger vehicles, dually trucks, or decks with anchor rails set back from the wheel wells.
Does the extra length affect how the strap stores when not in use?
An 18 Ft strap is longer to coil or fold than a 14 Ft strap, which some operators account for in cab or deck storage. Beyond storage, the hardware and function match the 14 Ft Chain Tail kit.
Can I mix 14 Ft and 18 Ft straps within the same 8-point set?
Straps of different lengths can be used together as long as each is routed and tensioned correctly for its specific anchor point. Confirm routing and full ratchet engagement at every point regardless of strap length.
